Development Boards

As, our organization has stringent quality management strategies, our complete range of products is preferred by many across the industry. Feel free to get to approach us for placing orders and stay assured for timely and safe deliveries!

Main features : RS232 Tx, Rx interface with MAX232 IC on socket DIL40 ZIF Socket ( Zero Insertion Force) microcontroller socket - To Reduce Microcontroller Damages ULN 2803 To Drive Stepper Motor&Relays Quartz crystall 11.0592Mhz Reset button Power plug-in jack Extension slot on every uC pin GND bus Vcc bus. Four mounting holes 3,3 mm (0,13") I/O

Features : 89v51RD2 Flasher through RS232 using Flash magic Software On board Regulated Power Supply 5v,12v supplys Easy to test with Burg Connecters wires A Serial Port for ISP An RS232 Serial Port 7Seg Mulitplexed Display DC Power Supply Connector(12v Ac or Dc) Rdy Interfac For LCD display 2linex16Character 24Cxx I2C EEPROM RTC DS1307 8 LED array Matrix Key Pad 4 Intruupt Switchesr Eaxample Programs for LED,7seg,LCD,RS232 ,Matrix Key Pad, ADC Easy To flash 89V51RD2 Through Flash Magic Software Feautures of 89V51RD2 - 8051 based CMOS controller with PCA, Dual DPTR,WDT,32 I/O lines, 3 Timers/Counters, 7 Interrupts/4 Priority Levels,64K Bytes ISP FLASH, 256 Bytes on-chip RAM, 768 Bytes XRAM Package Content 8051 Development Board ( with chips RS232,RTC1307,I2C24004,ULN2003) Burg Connecters 20 Nos Software CD( Flash Magic, Data sheets, Example Porograms, Manual, Keil Eva

We are a respected name from Maharashtra (India) and involved in catering to the varied demands of the customers. Owing to our well-maintained and organized inventory system, we deliver the same in the committed time. The offered Arduino Development Boards have internal flash memory of 512 KB and 84 MHz clock frequency.

Designed and developed with perfection, our products are of unmatched standards. With excellent and reliable shipping facilities, our team delivers the product range in the dedicated time period. The offered ARM Cortex-A8 Development Boards are available with a quality warranty of 12 months.

All thanks to our modern transit amenities owing to which we are capable to furnish safe and time-bound deliveries. As we remain much concerned about the safety of the products, we store the entire lot in our capacious warehousing unit under secured environment and expert's supervision. The offered ARM11 Development Boards are available in a thickness of 1.6mm.

We are sprawling over a large area with exceptional warehouse, which is well-equipped with cutting-edge technology and up-to-date management systems. With automated warehouse systems, we efficiently serve the bulk requirements. Sourced from the certified places, our Arm 7 Development Board is superb on the counts of performance, precision and prices.

Specifications :

• Microcontroller - LPC2148 with 512K on chip memory Crystal for LPC2148: 12Mhz
• Crystal for RTC - 32.768KHz 50 pin Berg header for external interfacing
• Operating Supply - 9V DC/AC 2.4GHz ZigBee (XBee) wireless module adaptor 512 bytes of I2C external EEPROM USB Type B Connector SD / MMC card holder 10pin(2X5) FRC JTAG connector for flashing and debugging 50 Pin Expansion header 2x16 Character Alphanumeric LCD L293D 600mA Dual DC motor Driver ULN2003 500mA driver Dual RS232 UARTs for external communication Real-Time Clock with Battery Holder 2 Analog Potentiometers connected to ADC TSOP1738 IR receiver 4 USER Switches 4 USER LEDs Reset and Boot loader switches 3V button cell for on chip RTC ON/OFF switch Buzzer Schematics and Application examples in KEIL provided in the documentation CD

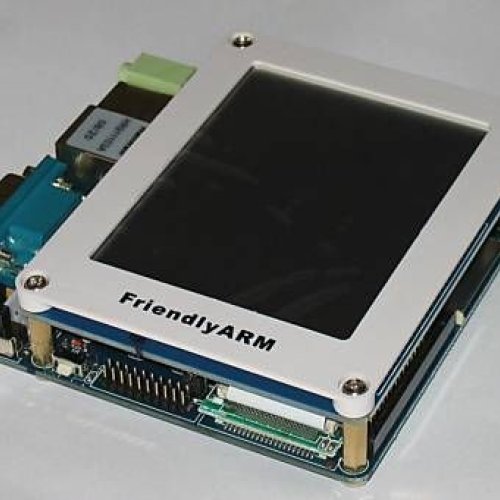

Based in Maharashtra(India), we have gained prominence in the market with our professional behavior and affordable prices. Our quality auditors conduct regular examinations of the product to keep the quality standards high and as per the international norms. The offered ARM9 Development Boards have separable CPU module which can be integrated into the final product directly saving development time.

We are situated in Maharashtra(India) and have established a fine network with the help of which we ensure timely delivery. Owing to our flawless transit system, we are capable of delivering the orders within the promised time frame.

Features : PIC Development Board for Microchip PIC Series ( EX 16F877 - 40 pin) RJ11 Socket For Programming Through PIC PROG, PIC PLUS, PICICD2 During Testing Easy to Remove Chips with ZIP Socket On board Regulated Power- Optional Supply 5v,12v supply Easy to test with Burg Connecters wires An RS232 Serial Port 7Seg Mulitplexed Display DC Power Supply Connector(12v Ac or Dc) LCD display 2linex16Character 24Cxx I2C EEPROM RTC DS1307 8 LED array Matrix Key Pad 4 Intruupt Switchesr Example Programs for LED,7seg,LCD,RS232 ,Matrix Key Pad, ADC EXtra Adapters for 28Pin , 18Pin,14 Pin Chips ( By Order)

Package Contents : PIC Development Board Incudes RS232, ULN 2003, RTC1307, I2C 24C04 Burg Connecters 20 Nos Software CD (Data sheets,Example Porograms,Manua ,Schematic)
