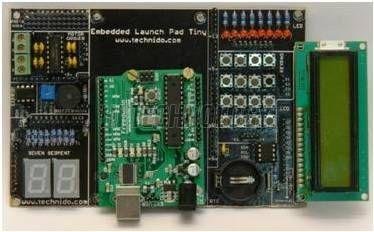

PIC Development Boards




We are situated in Maharashtra(India) and have established a fine network with the help of which we ensure timely delivery. Owing to our flawless transit system, we are capable of delivering the orders within the promised time frame.



Features : PIC Development Board for Microchip PIC Series ( EX 16F877 - 40 pin) RJ11 Socket For Programming Through PIC PROG, PIC PLUS, PICICD2 During Testing Easy to Remove Chips with ZIP Socket On board Regulated Power- Optional Supply 5v,12v supply Easy to test with Burg Connecters wires An RS232 Serial Port 7Seg Mulitplexed Display DC Power Supply Connector(12v Ac or Dc) LCD display 2linex16Character 24Cxx I2C EEPROM RTC DS1307 8 LED array Matrix Key Pad 4 Intruupt Switchesr Example Programs for LED,7seg,LCD,RS232 ,Matrix Key Pad, ADC EXtra Adapters for 28Pin , 18Pin,14 Pin Chips ( By Order)



Package Contents : PIC Development Board Incudes RS232, ULN 2003, RTC1307, I2C 24C04 Burg Connecters 20 Nos Software CD (Data sheets,Example Porograms,Manua ,Schematic)
