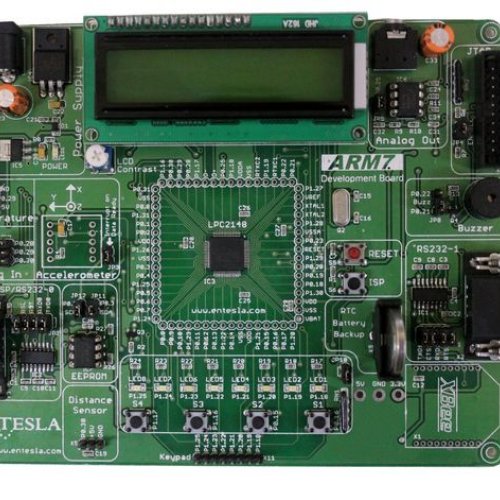

ARM7 Development Boards




We are sprawling over a large area with exceptional warehouse, which is well-equipped with cutting-edge technology and up-to-date management systems. With automated warehouse systems, we efficiently serve the bulk requirements. Sourced from the certified places, our Arm 7 Development Board is superb on the counts of performance, precision and prices.



Specifications :

  • Microcontroller - LPC2148 with 512K on chip memory Crystal for LPC2148: 12Mhz
  • Crystal for RTC - 32.768KHz 50 pin Berg header for external interfacing
  • Operating Supply - 9V DC/AC 2.4GHz ZigBee (XBee) wireless module adaptor 512 bytes of I2C external EEPROM USB Type B Connector SD / MMC card holder 10pin(2X5) FRC JTAG connector for flashing and debugging 50 Pin Expansion header 2x16 Character Alphanumeric LCD L293D 600mA Dual DC motor Driver ULN2003 500mA driver Dual RS232 UARTs for external communication Real-Time Clock with Battery Holder 2 Analog Potentiometers connected to ADC TSOP1738 IR receiver 4 USER Switches 4 USER LEDs Reset and Boot loader switches 3V button cell for on chip RTC ON/OFF switch Buzzer Schematics and Application examples in KEIL provided in the documentation CD
